SPECIFICATION
|
|

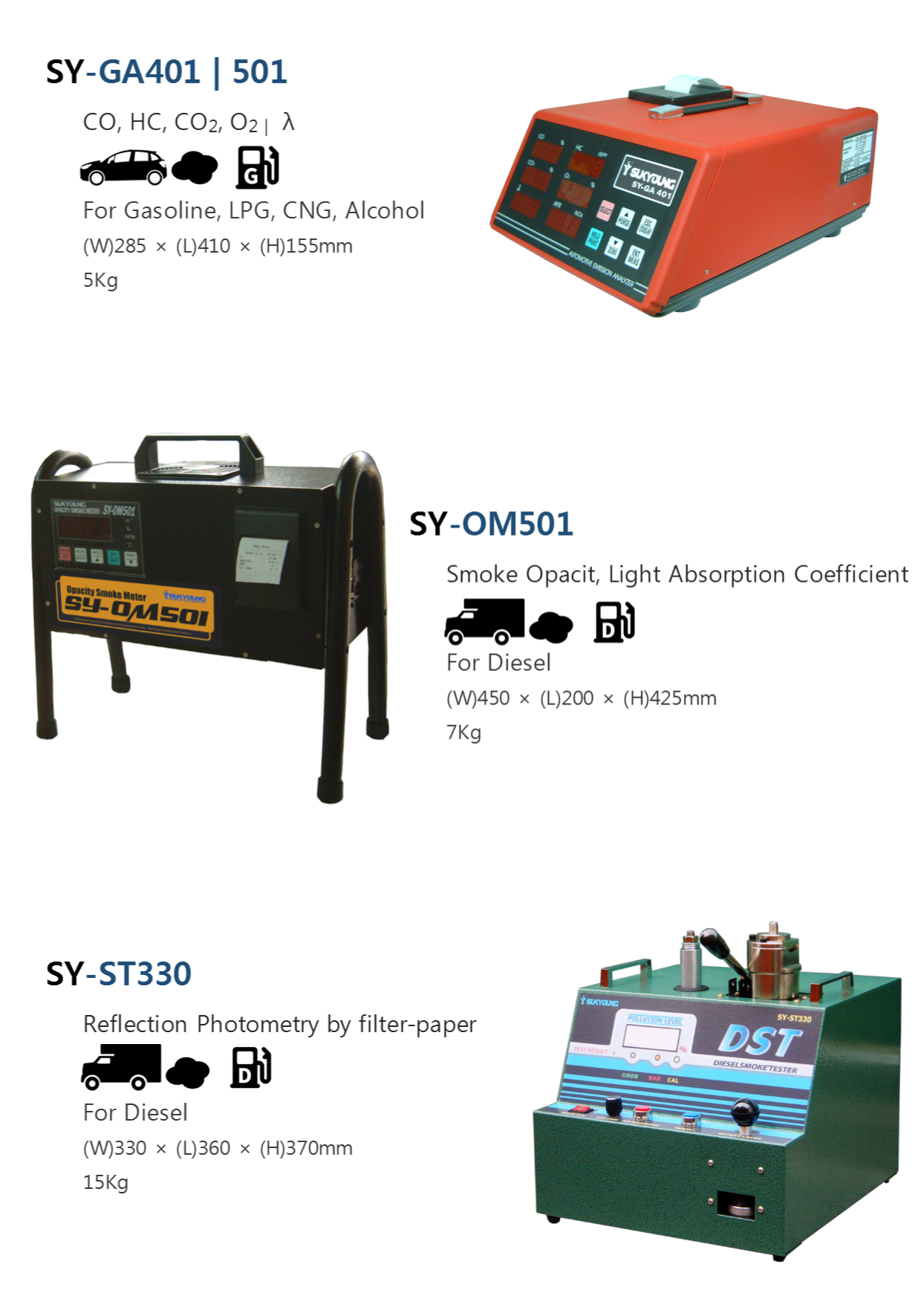

SY-GA 401 |
|||
|
Measuring item |
CO, HC, CO2, O2, λ(air surplus rate), AFR, NOX (optional) |
|||
|
Measuring method |
CO, HC, CO2 : NDIR Method // O2 : Electrochemical Cell |
|||
|
Measuring range |
CO |
0.00 ~ 9.99% |
HC |
0 ~ 9999 ppm |
|
Resolution |
0.01% |
1 ppm |
||
|
Display |
4 digit 7segment LED |
4 digit 7segment LED |
||
|
Measuring range |
CO2 |
0.0 ~ 20.0% |
O2 |
0.00 ~ 25.00 % |
|
Resolution |
0.1% |
0.01 % |
||
|
Display |
4 digit 7segment LED |
4 digit 7segment LED |
||
|
Measuring range |
λ |
0 ~ 2.000 |
AFR |
0.0 ~ 99.0 |
|
Resolution |
0.001 |
0.1 |
||
|
Display |
4 digit 7segment LED |
4 digit 7segment LED |
||
|
Repeatability |
Less than ±2% FS |
|||
|
Response time |
Within 10 seconds (more than 90%) |
|||
|
Warming up time |
About 2 ~ 8 minutes |
|||
|
Sampling amount |
4 ~ 6 L/min
|
|||
|
Power |
AC110V only or AC220V only ±10%, 60Hz |
|||
|
Power consumption |
About 50 W |
|||
|
Operation temperature |
0℃ ~ 40℃ |
|||
|
Dimensions |
285 (W) × 410 (D) × 155 (H) mm |
|||
|
Weight |
About 4.5 kg |
|||
|
Basic accessories |
Probe, Probe hose, Spare fuse, Leak test cap, Spare filter, Operation manual, Power cord, Calibration controller nipple, Ground cable, Calibration connecting hose |
|||
|
Options |
RS232, Communication cable, Printer, Printer paper |
|||
|
Product name |
Automotive Opacity Smoke Meter |
|
|
Model No. |
SY-OM501 |
|
|
Measuring method |
● Smoke opacity (%), k (m-1): Light absorption coefficient ● RPM (option), °C (option): Light extinction method (Partial-flow sampling type) |
|
|
Light source |
Green LED(565nm) |
|
|
Detector |
Photodiode |
|
|
Shell length |
Length : 215mm |
|
|
Shell inside diameter |
21mm |
|
|
Shell temp. |
Maintain constantly about 80℃ |
|
|
Smoke |
Measuring range |
0.0~100.0% |
|
Resolution |
0.1% |
|
|
Display |
4digit 7segmentLED |
|
|
K |
Measuring range |
0.00~21.42m-1 |
|
Resolution |
0.01m-1 |
|
|
Display |
4digit 7segmentLED |
|
|
RPM |
Measuring range |
0~8000RPM |
|
Resolution |
10RPM |
|
|
Display |
4digit 7segmentLED |
|
|
Oil Temp. |
Measuring range |
0~150℃ |
|
Resolution |
1℃ |
|
|
Display |
4digit 7segmentLED |
|
|
Display of smoke |
4 times per a second |
|
|
Data dispatch |
RS232 Method, 4 times per a second (Ref. Protocol) |
|
|
Warming up time |
About 3~6 minutes |
|
|
Using filter |
0.5second Besel low pass digital filter |
|
|
Electricity source |
220V / 110V AC 50 /60 Hz |
|
|
Consumption |
About 100W |
|
|
Operation temp. |
0~40℃ ( Sampling probe hose : less than 300 ℃) |
|
|
Size / Weight |
450(W) x 200(D) x 245(425)(H) mm / About 7kg |
|
|
Probe length |
1m |
|
|
Probe inside diameter |
Inside diameter: 10mm |
|
|
Basic accessory |
Probe & Hose, Power cable, RS232C cable, manual, PC software |
|
|
Option |
Built-in printer, RPM sensor, Oil temp. sensor , Handheld terminal, Standard filter |
|
- Description: Diesel smoke tester
- Model No.: SY-ST330
- Measuring principle: Reflection photometry principle with filter paper
- Smoke inhalant method: By air cylinder
- Smoke inhalant amount: 330cc (±15cc)
- Smoke inhaling time: 1.4sec (±0.2sec)
- Measurable range: 0.0 ~ 100%
- Min value for indication: 0.1%
- Accuracy: 0.3%
- Reproducibility: 0.9%
- Response speedy: 5sec
- Indicative method: FND
- Working condition: -10℃ ~ 45℃
- Suitable air pressure: 6~ 8kg/㎠
- Length of probe: 530mm
- Power supply: AC220V, 50/60Hz
- Weight: Net – 15kg, Gross – 18kg
- Dimension: 330 x 360 x 370mm
- Packing dimension: 360 x 380 x 380mm
- Standard accessory: Standard contamination paper - 1pc, Filter paper - 1box, Air hose - 450mm
